Full-Dynamix announce new Gravel Bikes

Full Dynamix S

Battaglin Cicli have launched a new range of gravel bikes under the Full Dynamix name. The revived brand, originally launched in 1999 by Giovanni Battaglin to concentrate on cross-country mountain bikes, now offers customers a choice in material from carbon fibre to aluminium and steel for their exclusive gravel bikes.

The new Full Dynamix range comprises three models simply called the Gravel C, Gravel A and Gravel S, all of which are completely handmade in Italy at Battaglin’s factory in Marostica.

Gravel C

The Gravel C features a full 3K carbon tube-to-tube construction, allowing Full Dynamix complete control over the fabrication process.

Prominent features of the Gravel C are front and rear thru-axles, flat-mount dic brakes, internal cable routing, a PressFit BB92 bottom bracket, 1X and 2X drivetrain compatibility and clearance for 700 x 41 mm / 650 b x 50 mm tires.

The ‘all-out racer’ of the range. The ‘C’ is intended to do one thing and one thing only: Win.

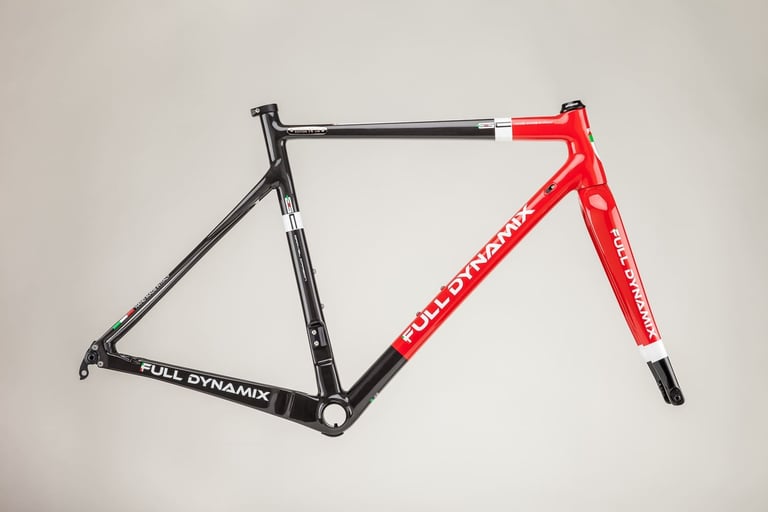

Battaglin Full Dynamix C

Full Dynamix carbon ‘C’

If you would like to own one of these frames, you had best put your in order now. The Gravel C is limited to a production run of just 60. Very exclusive indeed!

Gravel C Specifications:
Frame: Full 3K carbon fibre.
Fork: Full carbon monocoque tapered fork with thru-axle, 1 1/8″ to 1 1/2″.
Weight: 1,180 gr (medium size), with all parts except thru-axle.
Cable routing: Internal.
Bottom bracket: PressFit BB92.
Groupset compatibility: X1 and X2 compatible, Shimano Di2 / Campagnolo EPS compatible.
Brakes: Hydraulic disc brakes, flat mount.
Hangers: Aluminium interchangeable rear hangers.
Rear thru-axle: 142x12mm.
Seatpost diameter: 27.2 mm.
Tire clearance: 700c x 41 mm / 650b x 50 mm.

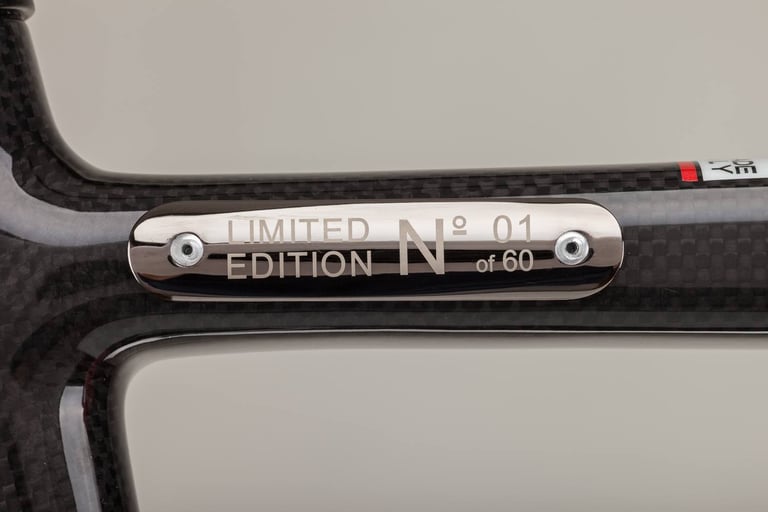

Full Dynamix C - Limited Edition

Full Dynamix C – A strictly limited edition run of 60 frames

Gravel A

The Gravel A follows the same artisan principles as the Gravel C, but is contructed from Dedacciai’s Aegis custom alluminium tubing and handcrafted by Battaglin’s team of skilled, Italian framebuilders.

Described as their ‘do it all’ frame, the ‘A’ will tackle long distance adventures and furious racing with aplomb.

Just like its carbon sibling, everything that makes a gravel bike a gravel bike are apparent on the Gravel C to include the decision to use a CNC machined 68mm bottom bracket shell that’s compatible with both mechanical and electronic groupsets, along with a full carbon monocoque fork.

The Gravel A is available in six standard geometries, ranging from XS to XXL.

Gravel A Specifications:
Tubes: Dedacciai Aegis custom to Full Dynamix’s specifications
Fork: full carbon monocoque tapered fork with thru-axle
Weight: 1.680 gr (medium size), with all parts except thru-axle
Cable routing: internal
Bottom bracket: BSA (68 mm) with aluminum CNC-machined bottom bracket shell compatible with both mechanical and electronic groupsets
Groupset compatibility: X1 and X2 compatible, Di2/EPS compatible
Brakes: Hydraulic disc brakes Flat Mount
Seatpost diameter: 27.2 mm
Headset: 1″1/8 top, 1″1/2 bottom
Hangers: Ergal interchangeable rear hangers
Rear thru-axle: 142×12 mm
Tire clearance: 700 x 41 mm / 650 b x 50 mm.

Gravel S

For steel afficianodos, Battaglin have you covered with the Full Dynamix Gravel S. Described as the ‘long distance, multi-day adventurer’ of the range, this is designed for comfort.

Battaglin have a collaborated with Columbus Steel for over 3 decades and this relationship led to Columbus customising the LIFE tubes to Battaglin’s unique specifications. The result is a triple-butted Omnicrom tube set, which is an exclusive solution in terms of design, stiffness and lightness. The same full carbon monocoque fork as used on it’s siblings also comes standard on the ‘S’.

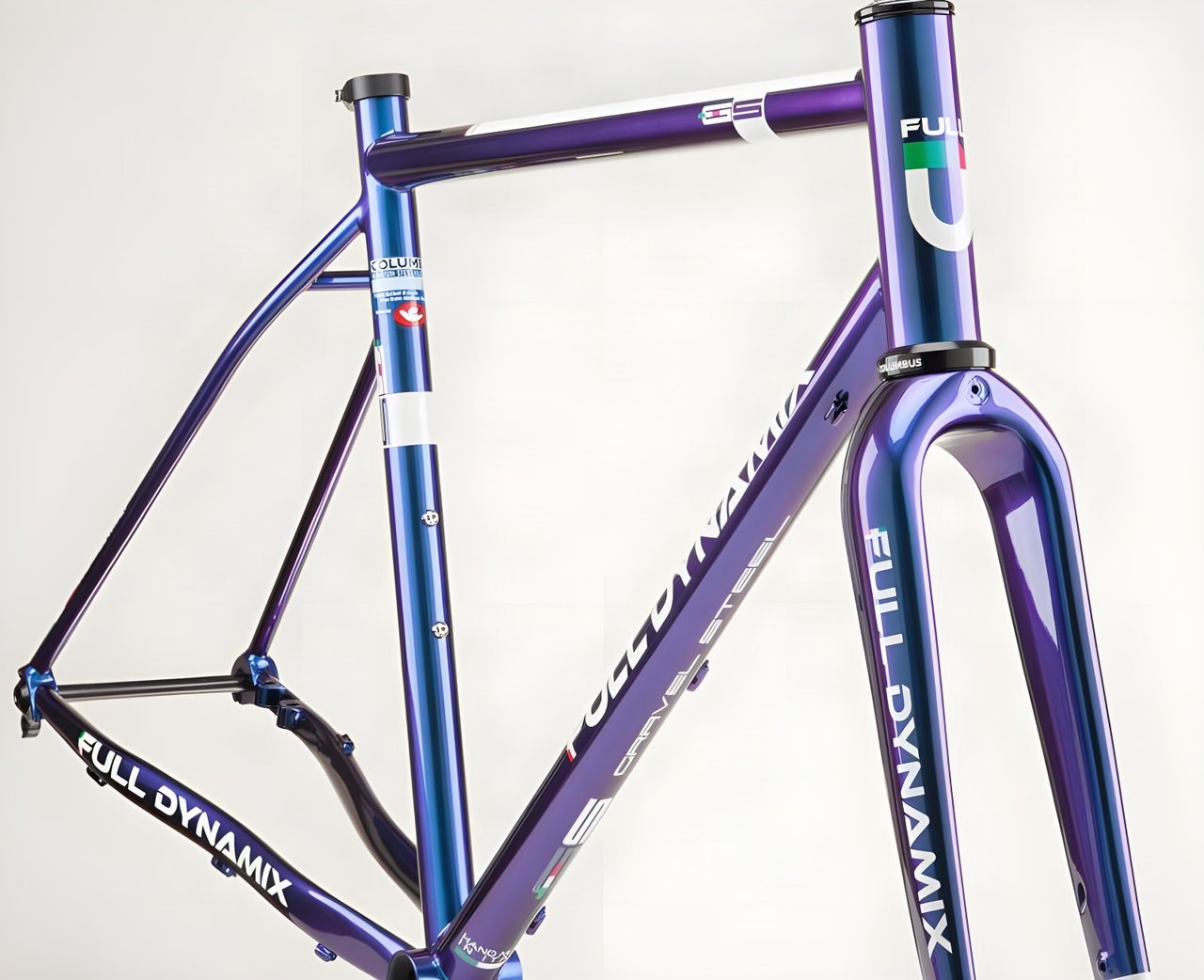

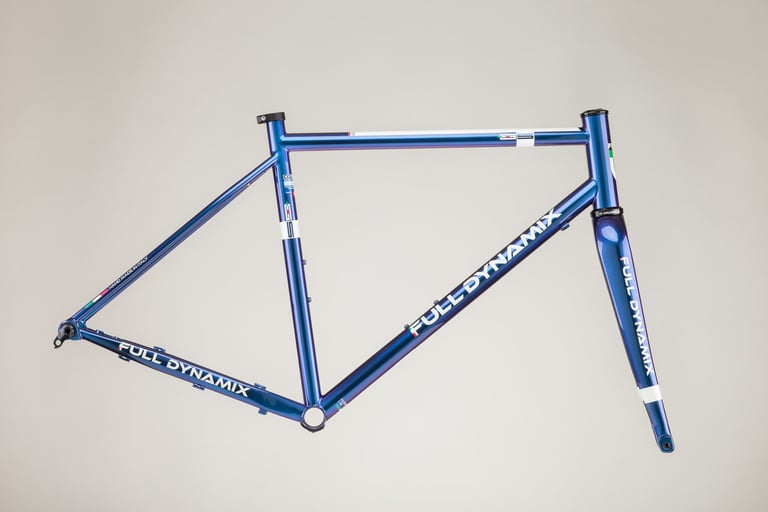

Full Dynamix S

Full Dynamix steel ‘S’

As with the rest of the Full Dynamix range, the Gravel S uses the same full carbon monocoque fork, thru-axles front and rear and flat-mount disc brake fittings.

Gravel S Specifications:
Tubing: Columbus Life custom design.
Fork: Full carbon monocoque tapered fork with thru-axle, 1 1/8″ to 1 1/2″.
Weight: 1,980 gr (medium size), with all parts except thru-axle.
Cable routing: External.
Bottom bracket: BSA (68 mm) English-threaded.
Groupset compatibility: X1 and X2 compatible.
Brakes: Hydraulic disc brakes, flat mount.
Hangers: Aluminium interchangeable rear hangers.
Rear thru-axle: 142x12mm.
Seatpost diameter: 27.2 mm.
Tire clearance: 700c x 41 mm / 650b x 50 mm.
Available in six sizes from XS (505mm top tube) to XXL (610mm top tube).

No official word on the pricing is available yet, but pre-orders can be taken. We’re planning on dropping in on Battaglin to see some of the Full Dynamix gravel bikes in the flesh and to get you some exciting photos very soon.

Until then, you can learn more about the range by visiting their website here.
