Bombtrack Beyond Junior 2020

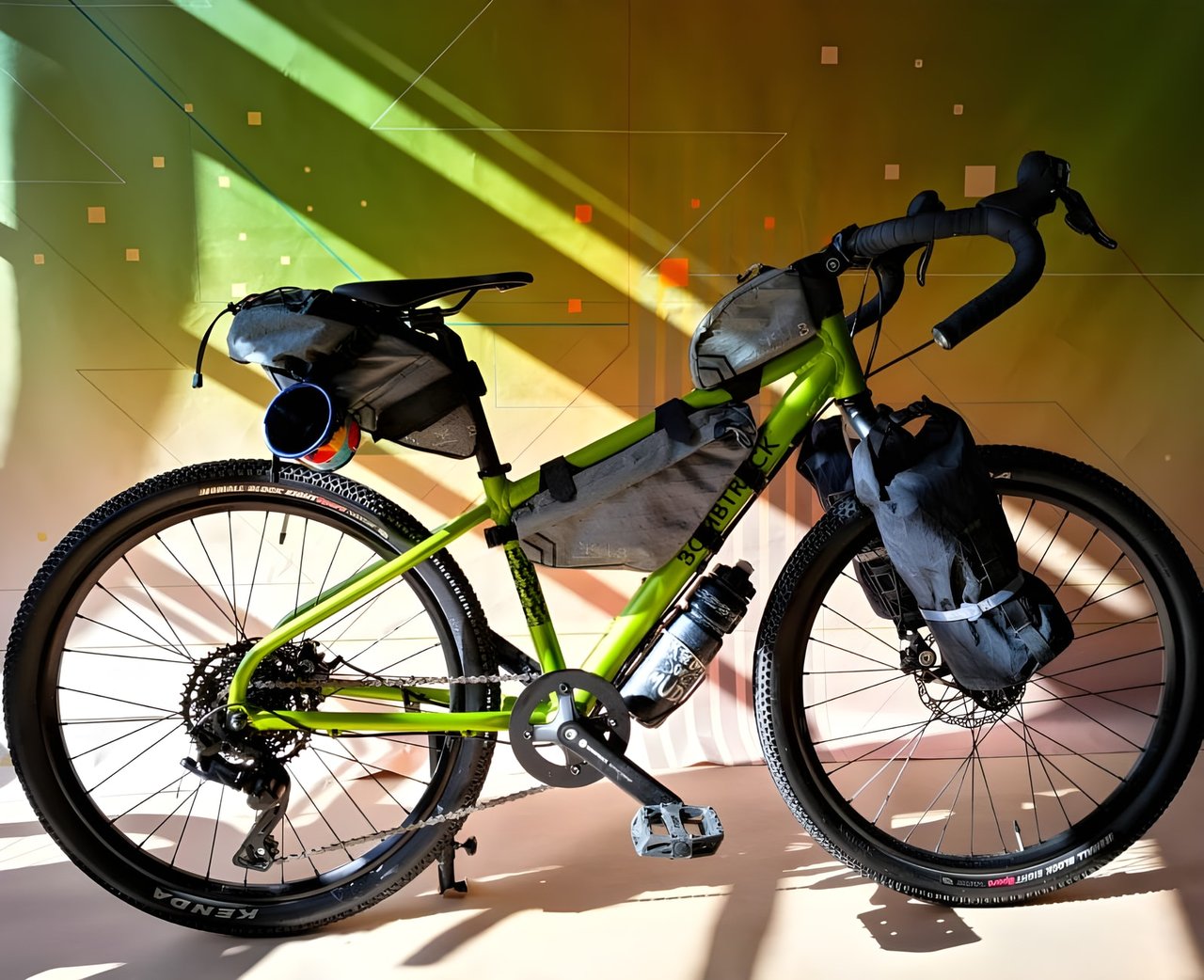

Bombtrack Beyond Junior

Preparing for an early start…

A few years back if you wanted a quality kid’s bike then Islabikes were the default answer. The industry has evolved over time and Islabike’s monopoly has seen challenge from the likes of Early Rider, Frog, HOY, and Pinnacle. If you want a well built, lightweight, and durable MTB, Road bike or ‘crosser you’ve plenty to choose from. But what about Adventure Bikes? Salsa have produced Junior versions of their Timberjack in 20″ and 24″ wheeled variants but that’s it. Until now…

Following in your tyre tracks

The Beyond drop-bar adventure bike has been a Bombtrack favourite since its release. With 29 x 2.0″ tyres, wide & flared bars, a tough steel frame bristling with mounts, and wide-ranging gears, it’s great choice for long distance off-road touring. Bombtrack have obviously realised that Mum & Dad shouldn’t have all the fun to themselves and have set about translating the Beyond formula into a Junior model. While both the full-size and Junior Beyond models come in metallic green (different shades admittedly) the design team haven’t just xerox’ed the blueprints at 50%.

Bombtrack Beyond Junior

Rolling stock

Obviously the Bombtrack Beyond Junior wasn’t going to retain the 29″ wheels of its big brother and Bombtrack have opted for 24×1.95″ fast-rolling Kenda Small Block Eight tyres. If you look closely at the images you’ll see these have mud clearance in spades so in dryer conditions you could probably get away with something larger if necessary. Tektro Mira Disc Brakes with 160/140mm discs take care of braking duties, useful as a youngster’s riding style can often lead to less than true wheels!

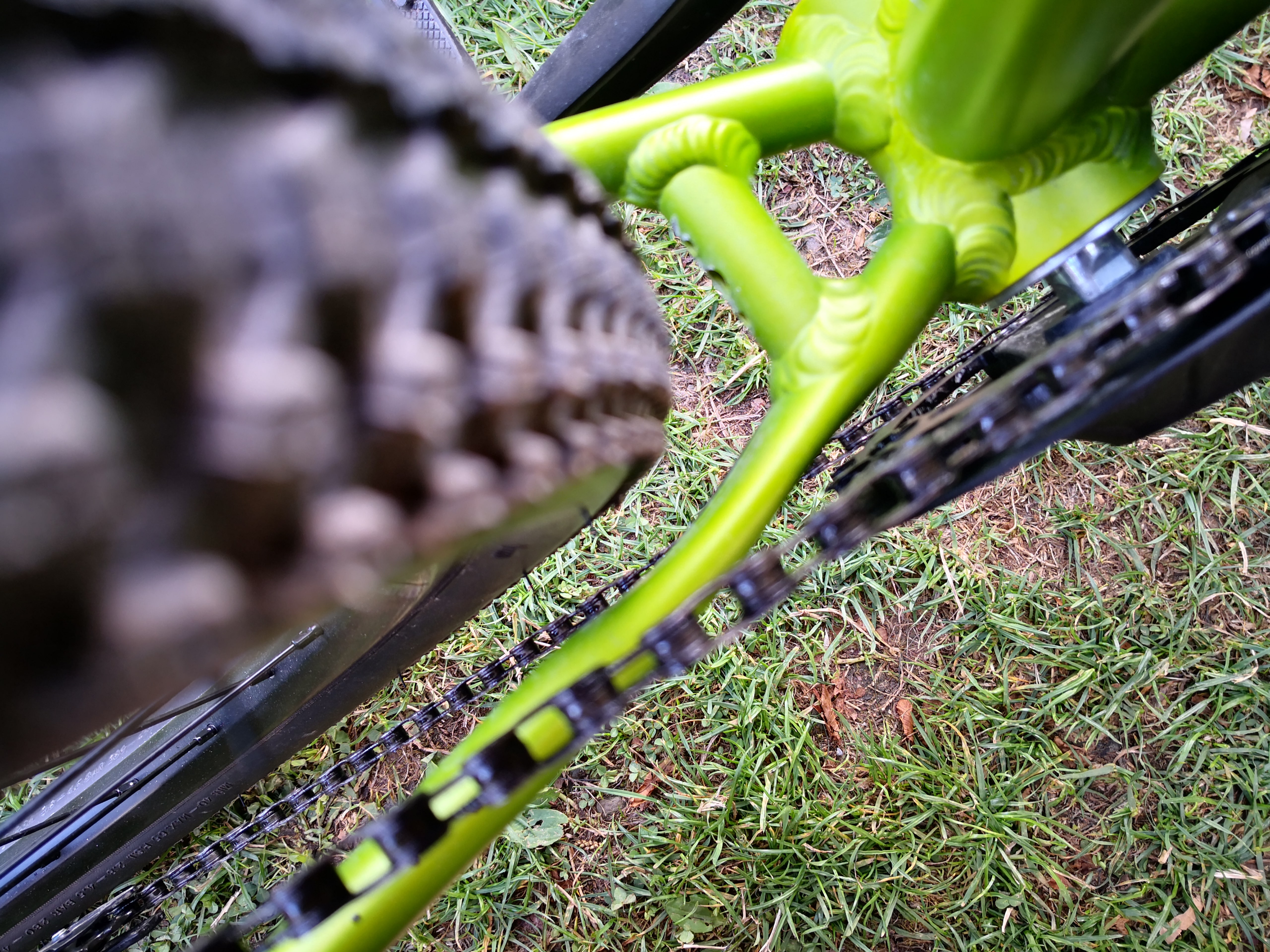

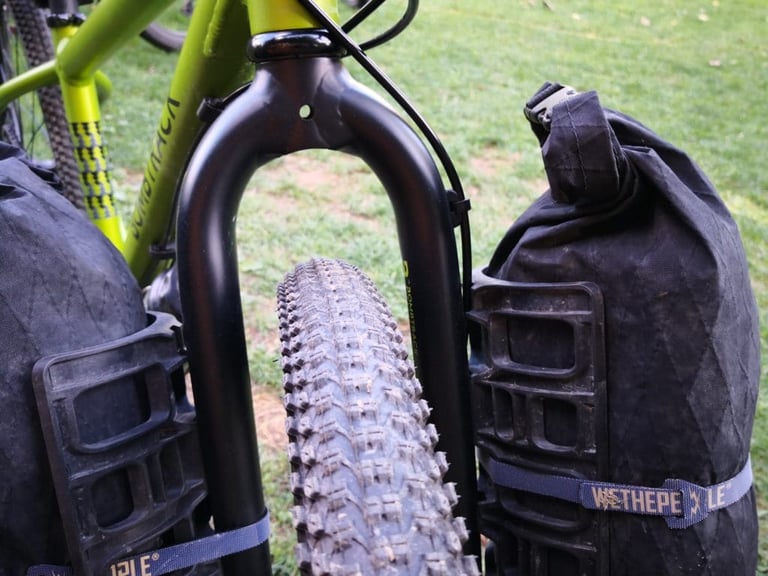

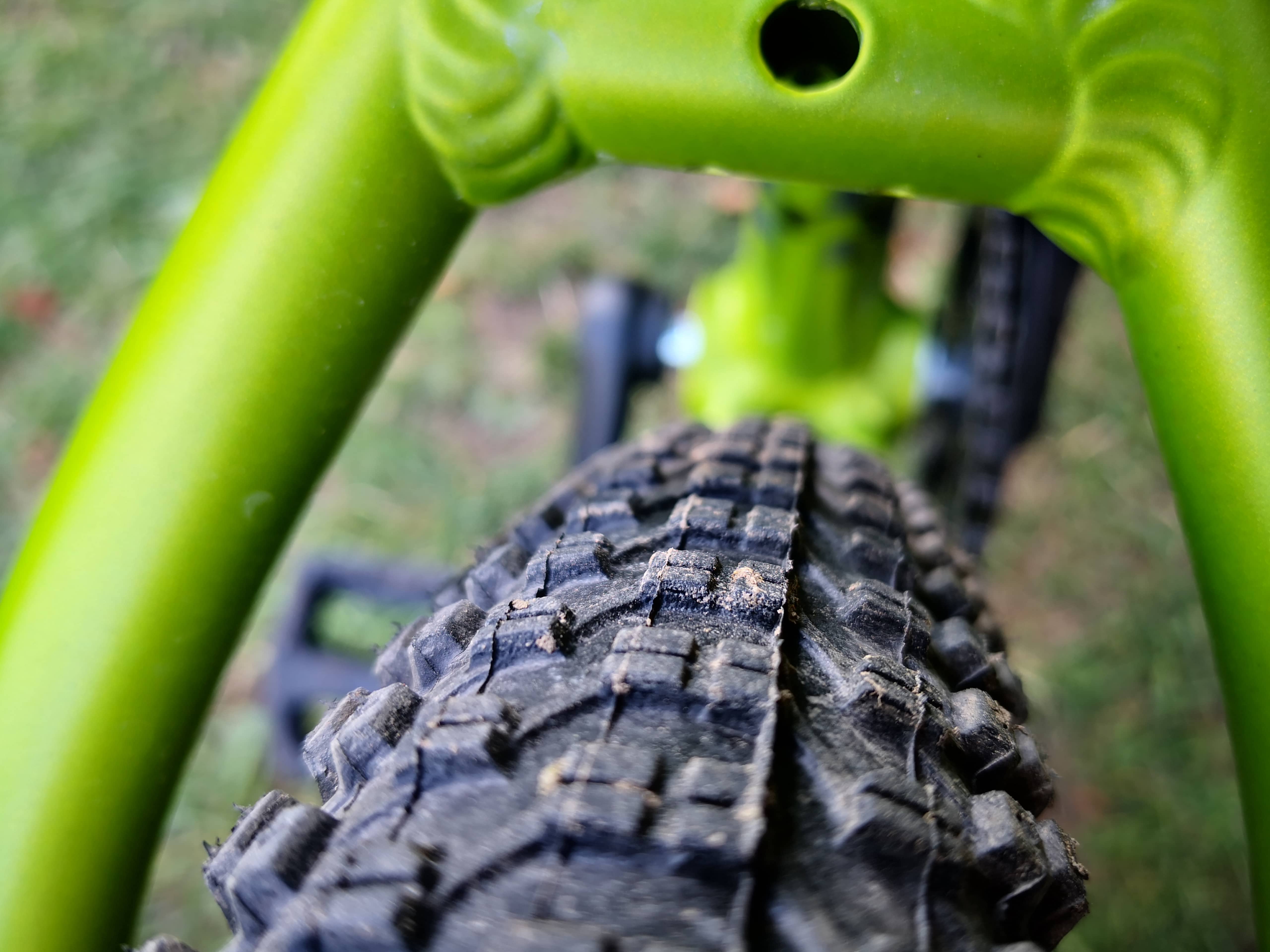

Bombtrack Beyond Junior has huge clearance

No issues with mud clearance here!

Bombtrack Beyond Junior Frame details

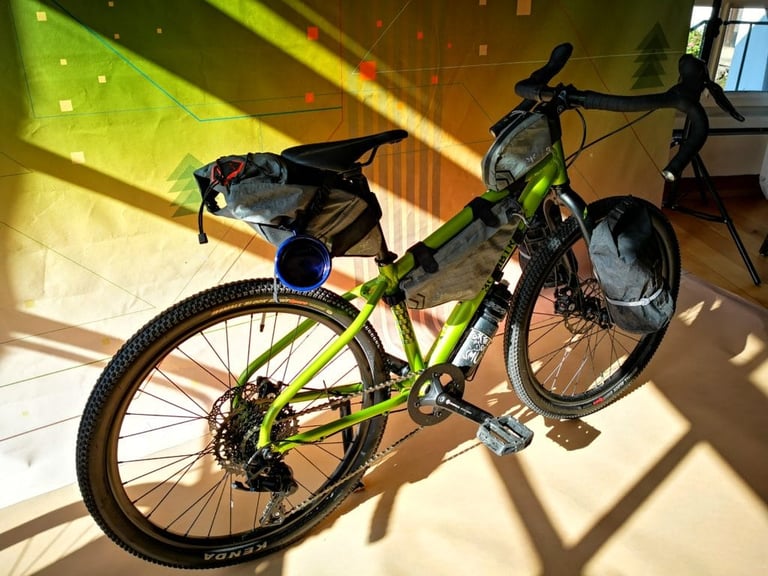

The biggest difference here between the Beyond and the Beyond Junior is the choice of frame material. For the smaller bike it made sense from a weight perspective to use alloy as opposed to 4130 Cr-Mo steel. For the lighter duties the Junior will face, the extra burliness afforded by steel isn’t necessary. Material aside the design team have made sure the Bombtrack Beyond Junior is the match of the full size bike. The frame features bottle cage mounts both above and under the down tube, triple-pack anything-cage mounts on the forks and mounts for a toptube fuel-tank. Both the frame and fork feature rack & guard mounts so load carrying options are limitless. In the images you’ll see that the display bike features optional luggage that Apidura have produced specially for the Beyond Junior.

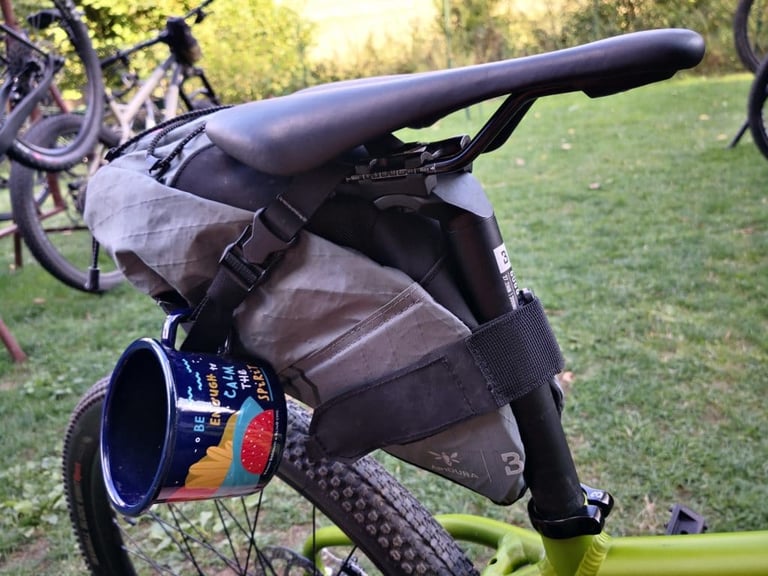

Dangle Mug photo

You’re never too young to dangle a mug!

Got all the gear

The other big difference between the Beyond and Junior is the drive train. Once again Bombtrack have gone the extra mile to improve the Junior rider’s experience. For the Beyond Junior, Bombtrack have turned to Microshift and their new Advent drivetrain. Advent aims to marry the technology of the latest 1x gear systems into a more robust and easily tuned 9-speed arrangement. Without the need for precise adjustments and close tolerances the Advent drivetrain should be fuss-free for younger riders ploughing through harsh conditions. Like the latest kit from SRAM or Shimano, the Advent drivetrain on the Junior features an 11-42 cassette, a rear-mech clutch and custom 152mm cranks with a narrow-wide chainring. Additionally, Microshift have reworked the shifter mechanism to make the shifting action easier for smaller, less powerful hands. This attention to detail is amazing for a child’s bike!

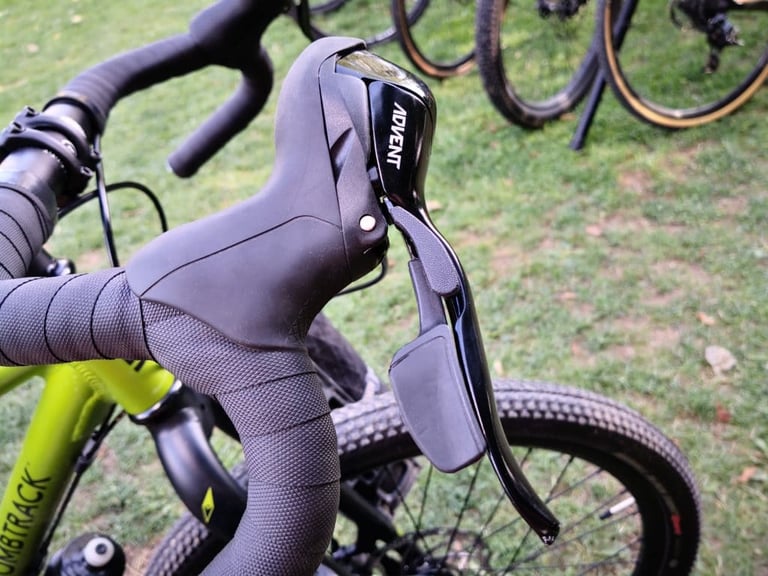

Bombtrack Beyond Junior features Microshift Advent levers

Custom-spec’d light action shift and brake levers

How does it ride?

I have to confess that I did actually ride the Bombtrack Beyond Junior, albeit only around the bike stands at Groundwork, it has a magnetic appeal that makes you want to take it for a ride, regardless of whether it fits. It’s also uncanny that ADVNTR’s youngest team member (My daughter!) was flicking through the 2020 range postcards and chose the Junior because it was a cool colour. I wonder how generous Santa is feeling this year? It’s clear that Bombtrack have put a great deal of thought into the Beyond Junior. The frame design and components show little compromise on quality or function, and aesthetically it’s a serious bike, to have serious fun on! Let’s face it, kids love to do what Mum and Dad do, so I can see a lot of Beyond and Beyond Juniors hitting the trails together!

Junior Bombtrack on a postcard

Bombtrack Beyond Junior Specifications

  • Frame: 6061 Alloy with triple-butted downtube, rack & fender mounts, double bottle mounts, threaded BB and replaceable hanger
  • Fork: 6061 Alloy with double-butted blades, rack, fender & anything cage mounts
  • Bars: Bombtrack Beyond travel bar, 38cm wide, 31.8mm diameter and 22° flare
  • Brake Levers/Gear Shifters: Microshift Advent SB-M090 dual controls with custom lighter strength mechanism
  • Rear derailleur: Microshift RD-M6195 clutch mech
  • Cassette: Microshift CS-H093 9 spd 11-42t
  • Chainset: Bombtrack Mach 152mm cranks with a forged-steel 32t Narrow-wide chainring
  • KMC X-9 Chain
  • Wheelset: 24″ Wheels, Bombtrack TX20 i19 32h Rims, Bombtrack Title-6 bolt QR disc hubs, 11-speed freehub & Kenda Small Block Eight 24″x1.95″ Tyres

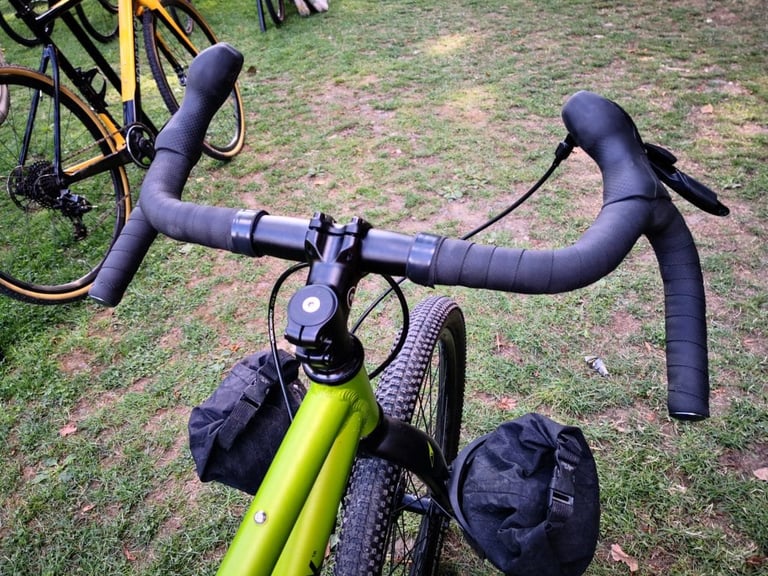

38cm Flared drop bars

Frame Geometry

  • Seat tube: 330mm
  • Top tube length (horizontal): 473mm
  • Seat angle: 74°
  • Head angle: 72°
  • Head tube length: 100mm
  • BB drop: 30mm
  • Chainstay length: 390mm
  • Fork offset: 45mm
  • Fork trail: 55mm
  • Wheelbase: 919mm
  • Standover: 672mm
  • Reach: 325mm
  • Stack: 501mm
  • Front centre: 531mm
  • Axle to crown: 400mm

Don’t expect the Beyond Junior to be available in huge numbers, especially in the UK. We’re waiting on details of pricing from Bombtrack Cycles UK distributor, Lyon Cycle and will update accordingly.
